不同洞缘角磨牙Ⅰ类洞复合树脂充填的应力分布
陈红星(
),刘思瑶,黄雨亭,潘爽()
),刘思瑶,黄雨亭,潘爽()
Stress distribution of composite resin filling in Class I cavity of molars with different cavosurface angle
CHEN Hongxing(),LIU Siyao,HUANG Yuting,PAN Shuang()
),LIU Siyao,HUANG Yuting,PAN Shuang()

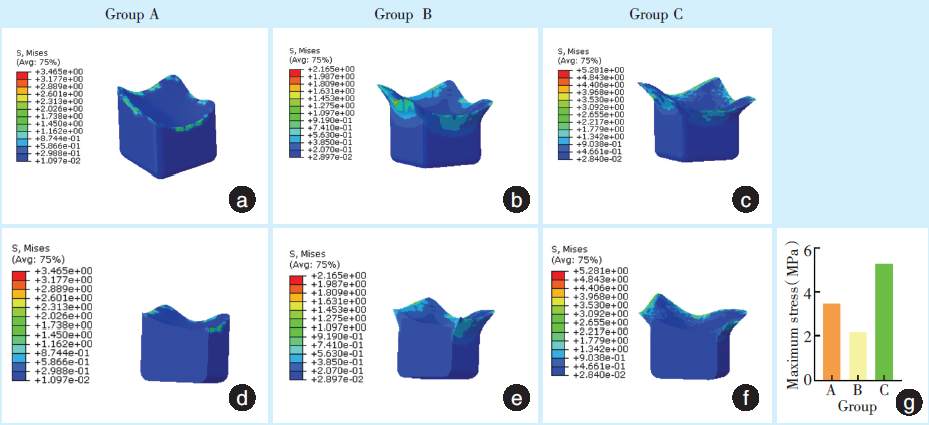

图4. 3组复合树脂等效应力分布
Figure 4. Equivalent stress distribution of composite resin in the three groups
a-c: distribution of equivalent stress of composite resin, with the maximum stress in each restoration model mainly concentrated at the edge of the restoration material; d-f: distribution of equivalent stress of composite resin in the buccolingual direction; g: maximum stress of composite resin; group A: the cavosurface angle is 90°; group B: the cavosurface angle is 120°; group C: the cavosurface angle is 135°
